Formulation and evaluation of natural lip balm
- Author Details:
-
X. Fatima Grace *
-
K. Himana Begam
-
A. Janani
-
M. Jayaram
Abstract
The formulation and evaluation of a natural lip balm with beetroot juice as the main ingredient are the main subjects of this study. Due to its natural pigments and moisturising qualities, beetroot known for its rich colour and possible health benefits is a promising ingredient in cosmetics. The research begins with the development of a formulation incorporating beetroot juice alongside other natural ingredients to create a lip balm product.
Subsequently, the physical, chemical, and sensory aspects of the lip balm formulation are evaluated. The overall quality and consumer attractiveness of the product are assessed by analysing various parameters, including colour, pH, texture, fragrance, and moisturising efficacy. Furthermore, stability checks are carried out to ensure the durability and shelf-life of the lip balm under different storage conditions.
The findings of this study aim to contribute to the growing demand for natural and sustainable cosmetics while providing insights into the potential benefits of utilising beetroot juice in lip care products. Ultimately, the research seeks to offer a viable alternative to conventional lip balms, promoting both health-conscious and eco-friendly beauty solutions.
Introduction
Cosmetics play an important function in today's standards of life.[1] Herbal lip balm is a type of lip balm made from natural herbs and ingredients. In addition to protecting and moisturising the lips, the herbs employed in its formulation provide additional benefits. Typically, a combination of oils and waxes, including olive oil, coconut oil, beeswax, and shea butter, are included with herbs in herbal lip balm. Together, these components provide a nourishing and protective layer for the lips.[2]
Lips have distinct structure from the skin. Typically, the skins top corneum layer has 15 16 layers, most of which serve as protection. In contrast, the top corneum layer of the lips contains only approximately 3–4 layers and is incredibly thin compared with ordinary facial skin. The skin of the lips contains very few melanin cells. As a result, blood vessels are more visible through the skin of the lips, giving them a lovely pink. Sweat glands and hair follicles are absent on the lips. Therefore, it does not contain body lipids or sweat that would typically protect the body from the environment.
Lip anatomy

It is made up of the mucous membrane, areolar tissue, orbicularis muscle, superficial fascia, and skin. Dry, red mucous membrane that is continuous with the skin and has many touch corpuscles and vascular papillae covering the lip edges. ([Figure 1])
Vermillion border
Latin terms labium superius oris and labium inferius oris refer to the anatomical names for the upper and lower lip, respectively. [3] The lower lip includes the area between the lateral commissures and the labiomental crease of the chin, although considerations of the lips are typically focused on the vermilion zone. The upper lip extends from the nasolabial folds to the inferior border of the nose.
Tubercles
The tubercle or procheilon is the underlying fleshy fullness of the philtrum, which forms the downward arch of the cupid's bow.
Oral commisures
The commissure is the point where the upper and lower lips meet at the mouth angle. Several muscles used in lip movement attach at this location.
Philtrum
A symmetrical pair of paramedian vertical philtral ridges that surround the philtrum, a central depression, are features of the upper lip. Dermal collagen and thick elastic tissue combine to generate a special collection that forms the philtrum and philtral ridges. It is thought that the philtrum provides extra skin that can be pulled into oral movements that need upper lip stretching. [4]
Histology of lips

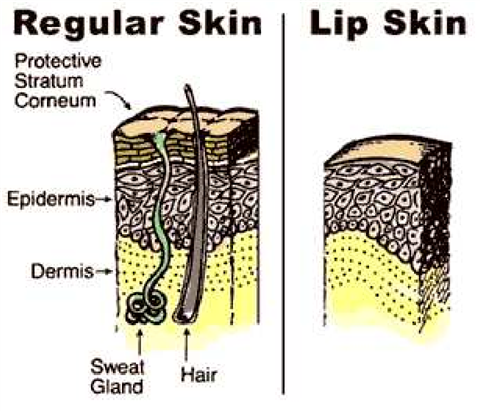

Properties of lips: ([Figure 2])
There are no sebaceous (oil glands on the lips
The lips have no hair follicles and no sweat glands
The layers of skin on the lips are extremely thin
(3To 5)
People with darker skin have some pigment, so the red hue of their lips is less noticeable.
Lips do not contain skin pigment, so blood vessels can be seen through the thin skin and make the lips appear red.
Due to their abundance of nerve endings, lips are sensitive to temperature, touch, and light.
8. Because there are no direct bony attachments to lips, they are incredibly elastic and malleable. [5]
Advantages of natural lipbalm
Lip balms contribute to maintain the lips' natural health and beauty.
Sunblock lip balms have been proven shown to protect the lips from UV radiation.
Both men and women can use these goods; they are not gender-specific.
Lip balm products aid in preventing chapping, dryness, and cold sores on the lips.
The product should produce a uniform layer over the lips to shield the labial mucous from external elements such pollution, dryness, and UV radiation.
It should not generate friction or a dry feeling when it comes into contact with the skin.
It relieves lip-related problems brought on by colds, the flu, and allergies while also rejuvenating and refreshing the lips.
Treating the skin's condition and facial look with natural lip cosmetics.
Disadvantages of natural lipbalm
Low-quality lip balms can cause serious harm to the lips, drying them out instead of moisturizing them.
Another drawback of using lip balms is that they tend to become addictive.
Homemade lip balms usually disappear from the lips more quickly than those produced in a manufacturing acility. Hence, you must frequently reapply.
Some lip balm manufacturers manufacture lip balms with the sole intention of appealing to the aesthetic, ignoring the health benefits and softness of the skin.
The naturally derived colors and flavors are more difficult to obtain and have stability issues in the products
Materials and Methods
Fresh beetroot was procured and ground to get fresh beetroot juice.
2 ml of beetroot juice was taken and Added 3.5 ml of Coconut oil this was heated with occasional stirring.
When the beetroot juice starts to caramelize, the heat was reduced.
The mixture was then transferred to a china dish.
Into another china dish beeswax, lanolin and cocoa butter was added & heated to 70℃ by double boil method.
This mixture was then added with beetroot juice & coconut oil.
Mixture and stirred continuously until a smooth consistency were obtained.
The above preparation was transferred to a suitable container and allowed to cool in a refrigerator.
This can be used as a lip balm and also as a substitute for a lipstick. Make sure your hands are clean when using this lip balm.
S.no |
Ingredients |
Formula |
Uses |
1 |
Beetroot juice |
2 ml |
Coloring agent |
2 |
Coconut oil |
3.5 ml |
Moisturizing agent |
3 |
Cocoa butter |
1.5 g |
Emollient |
4 |
Lanolin |
1.5 g |
Lubricant |
5 |
Beeswax |
1.5 g |
Natural preservative |
6 |
Rose oil |
Q. S |
Flavoring agent |
Parameter |
Observation |
Colour |
Mild red colour |
Odour |
pleasant |
Gritty particle |
No |
Consistency |
Good |
Spreadability |
Smooth |
Melting point |
64℃ |
pH |
6.4 |
Stability testing |
Stable |
Evaluation Parameters
Organoleptic characteristics:
The lip balm's tastes, appearance, odour, and colour were all evaluated.
PH parameter
The lip balm's pH has been determined by utilising a 1% preparation solution.
Spreadability test
А spread-ability test was conducted by spreading lip balm to a glass slide, and any deformation and breakdown were evaluated in compliance.
Melting point
The material was heated to a molten condition and then put into capillaries to determine the melting point. A device with a thermometer attached to it was connected to the capillaries. The melting point of the lip balm sample was found to be the temperature at which melting occurred.[6]
Stability test
Stability tests were conducted for one month, the lip balm was stored both at room temperature and in the refrigerator.
Result and Discussion
This lip balm formulation was aimed to incorporate natural ingredients as much as possible to retain the natural properties of the balm. Conventional lip balms can contain toxic substances, such as petrolatum, synthetic waxes, alumina, parabens, hydrogenated oils, artificial fragrances, and colors. To avoid these, we used beetroot to give the balm a natural colour. We evaluated the lip balm for its melting point, pH, spreadability, and stability studies. The results showed a melting point of 64°C and a pH of 6.4. The balm had good spreadability and did not deform. Stability studies conducted at different temperatures for one month revealed that the lip balm maintained its uniformity, and perfect application, and did not fragment or deform at room temperature and in the refrigerator.[7], [8], [9]
Conclusion
It was observed that the formulation remained stable when stored at room temperature and in the refrigerator, demonstrating consistent stability behaviour. The product's organoleptic characteristics were also found to be stable, and it had good spreadability. The storage conditions were considered appropriate as they helped in maintaining the product's functionality. In the stability test, it was noted that the lip balm made from natural ingredients had a suitable melting point, averaging 64°C. Based on these observations, it can be concluded that the natural ingredients used in the formulation of the lip balm were safe for use. Moreover, the combination of natural ingredients was found to be a better option for lip balm formulation. Furthermore, altering or combining ingredients can result in new formulations with different and enhanced quality.[7], [10]
Source of Funding
None.
Conflict of Interest
None.
References
- Kadu M, Vishwasrao S, Singh S. Review on natural lip balm. International Journal of Research in Cosmetic Science. 2015;5(1):1-7. [Google Scholar]
- Amale SS, Kamble RR, Wamane VB. Rode AR A Research On Herbal Lip Balm. Tıjer International Research Journal. 2023;10(5):142-160. [Google Scholar]
- Shazmeen I, Dehghan MH, Usman SA, Asim S. Review on the Formulations Available for the Treatment of Cheilitis-A Patent Perspective. GIS Science journal. 2023;10(1):758-766. [Google Scholar]
- Hodge BD, Sanvictores T, Brodell RT, Anatomy. . Skin Sweat Glands. In: StatPearls. StatPearls Publishing. . [Google Scholar]
- Nv Ms, Yadav AP. Lip: An impressive and idealistic platform for drug delivery. Journal of Pharmacy Research. 2011;4(4):1060-1062. [Google Scholar]
- Gitte N, Govindrao. Formulation and Evaluation of Herbal lipbalm. International Journal of Engineering Development and Research (IJEDR). 2023;11(6):411-427. [Google Scholar]
- Nahata AN, Ansari NM, Nahar S, Walode SG, Chatur VM. . Formulation and Evaluation of Lip balm Prepared Using Various Herbal Entities. 2022;10:122-127. [Google Scholar]
- Shaikh Nilofar Maheboob, Hingane .L. Formulation and characterization of lipbalm from beetroot. International Journal of Science & Engineering Development Research. 2022;7(6):1224-1232. [Google Scholar]
- Schlossman ML, Mccarthy JP. Journal of the American Oil Chemists'. Society. 1978;55(4):447-50. [Google Scholar]
- Gediya SK, Mistry RB, Patel UK, Blessy M, Jain HN. Herbal plants: used as a cosmetic. J Nat Prod Plant Resour. 2011;1(1):24-32. [Google Scholar]
